MistKing
MistKing Value 1/4" Run T Union Fitting
From $3.24 was
In stock
Buy more, pay less
Each, for the whole order. Change the quantity below and the total follows.

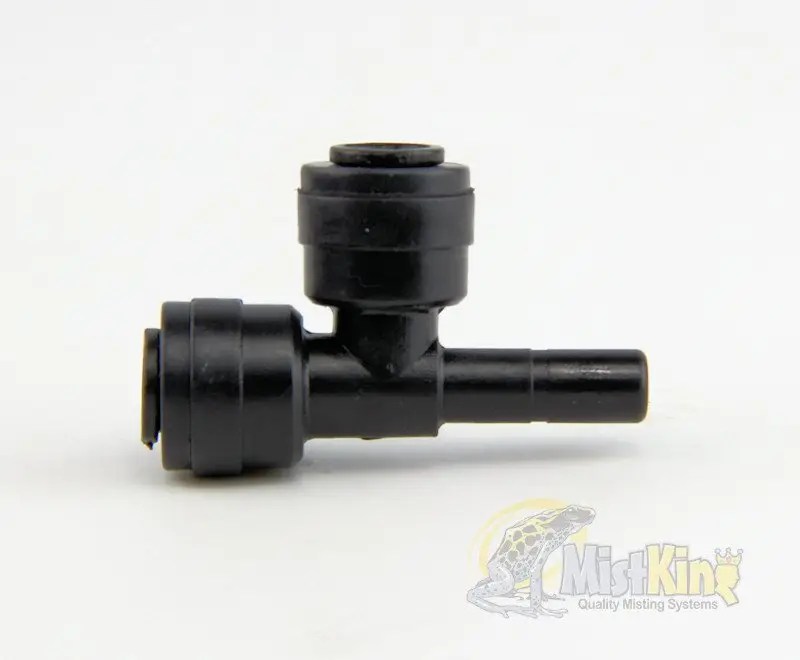

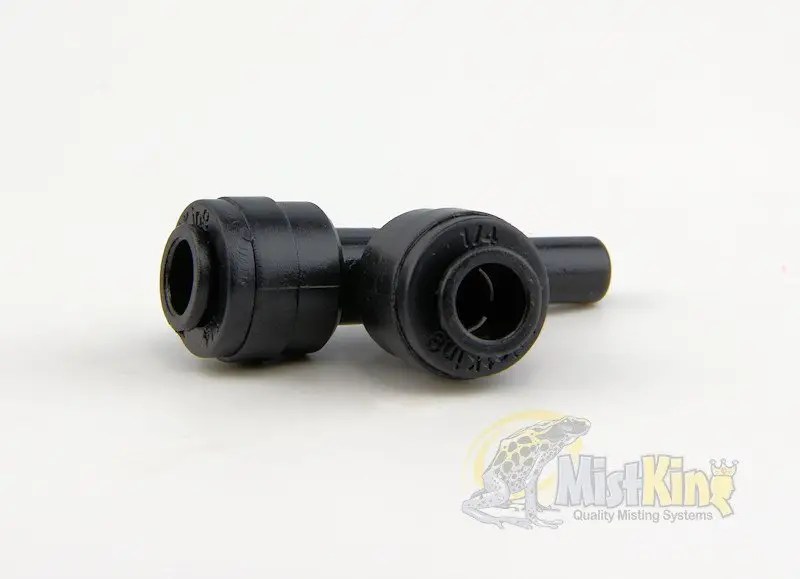

Keeps a MistKing ¼ in main line running straight through while a branch leaves at 90°. Handy along a rack or a row of enclosures, where one main line feeds smaller runs to each level or group.
Part number valueTUnion
Description
On this page
- ¼ in tubing
- 3 connections
- Main line continues
- Push-to-connect
Two ports form the straight path of the main line and the third takes a branch. You can add as many as the layout needs, and they make it easy to add a branch later when you add an enclosure.
At a glance
- Tubing
- ¼ in MistKing tubing
- Connections
- 3, push-to-connect
- Job
- Branch off a main line that carries on
- Colour
- Black
- In the pack
- 1 run T union
Where it goes in the line
Cut each tubing end square.
Push the incoming line into one straight-through port, and the continuing main line into the opposite one.
Push the branch into the side port and route it to its enclosure or rack level.
Fitting | Use it when |
|---|---|
Run T union | The main line continues and one branch leaves it |
One line divides into two branches | |
One line only needs to turn 90° |
On a bigger system, sketch the route first so you know how many of each fitting and nozzle you need.
Other MistKing fittings
Questions
How many can I use?
As many as your layout needs, as long as the total number of misting heads stays within your pump's capacity.
Does it include tubing?
No, one fitting only. Add ¼ in tubing as you need it.
| Part number | valueTUnion |
|---|---|
| Brand | MistKing |
| Shipping weight | 0.01 lb |
| Shipping box | 1.25 x 1.25 x 0.5 in |
Box size and weight are the packed carton, for shipping only, not the size of the item itself.
Shipping
Parcels across Canada and the US are priced at checkout from the packed boxes. Pallets and freight we price by hand, usually within one business day, and you pay nothing until you have seen the total. Pickup in Calgary is free.
Returns
14 day returns on eligible unused stock items, return shipping paid by the customer. Built-to-order goods are covered by the construction warranty rather than by returns. Restocking Fees Apply for returns
Warranty
One year warranty on the construction of anything we build.
